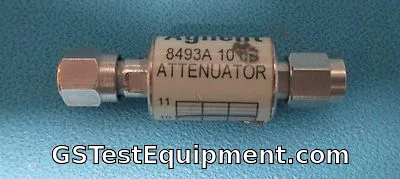

HP / Keysight / Agilent 8493A

Description

The Agilent 8493A coaxial fixed attenuator provides precision attenuation, flat frequency response, low SWR over broad frequency range at a low price. The attenuator is available in nominal attenuations of 3 dB and 6 dB, also 10 dB increments from 10 dB to 30 dB. This attenuator is swept-frequency tested to ensure it meets specifications at all frequencies. Calibration points are provided on a nameplate chart attached to each unit.

Key Features & Specifications

Superior RF Performance

• Frequency Range: DC to 12.4 GHz
• Maximum SWR: See table below for Maximum SWR Specifications

Power handling

• Maximum Input Power: 2 W (average), 100 W (peak)

Features

• Connector: SMA male, female
