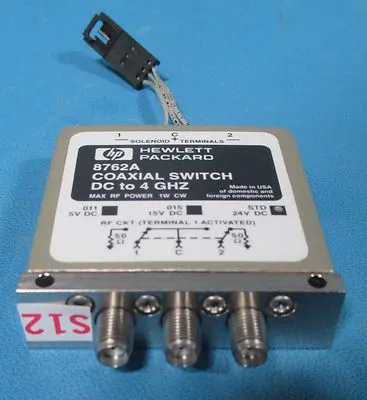

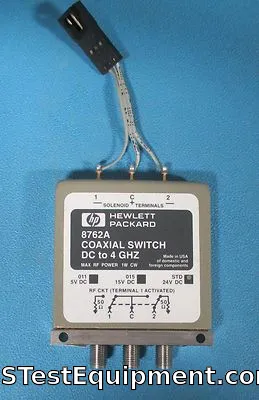

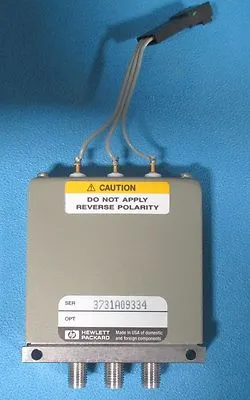

HP / Keysight / Agilent 8762A

HP Agilent 8763B 4-Port Coaxial Switch, DC to 18 GHz Option 24

$65.00

Condition: Used

BUY NOW Request Quote

Product Details

Model:: 8762A
Manufacturer:: HP / Keysight / Agilent
Category:: Switch
Condition:: Used
Availability:: In Stock - Ready to Ship

Specifications

Model:: 8762A
Brand:: HP Agilent

Product Description

HP Agilent 8763B 4-Port Coaxial Switch, DC to 18 GHz Option 24

Description

The Agilent 8763B offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability.

Key Features & Specifications

Type

Multiport coaxial switch with four RF ports, one with 50-ohm termination

Superior RF performance

Insertion loss: < 0.20 dB to 2 GHz, < 0.5 dB to 18 GHz
SWR (through line): < 1.1 to 2 GHz, < 1.2 to 12.4 GHz, < 1.3 to 18 GHz
Isolation: > 90 dB to 18 GHz

Excellent RF repeatability & long life span

Guaranteed performance up to 1 million cycles
