HP / Keysight / Agilent 8763A

HP Agilent 8763A 4-Port Coaxial Switch, DC to 4 GHz Option 24

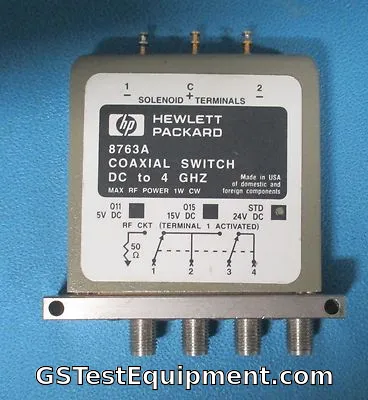

HP / Keysight / Agilent 8763A - main view
$75.00

Condition: Used

Product Details

Model:
8763A
Category:
Switch
Condition:
Used
Availability:
In Stock - Ready to Ship

Specifications

Brand:
HP Agilent
Model:
8763A

Product Description




HP Agilent 8763A 4-Port Coaxial Switch, DC to 4 GHz Option 24



Description

The Agilent 8763A offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability.

Key Features & Specifications

Type

  • Multiport coaxial switch with four RF ports, one with 50-ohm termination

Superior RF performance

  • Insertion loss: < 0.20 dB to 2 GHz, < 0.25 dB to 4 GHz
  • SWR (through line): < 1.1 to 2 GHz, < 1.2 to 4 GHz
  • Isolation: > 100 dB to 4 GHz

Excellent RF repeatability & long life span

  • High repeatability: < 0.03 dB typical
  • Guaranteed performance up to 1 million cycles

Features

  • Current interrupts and position indication capability
  • Optional TTL/5V CMOS
