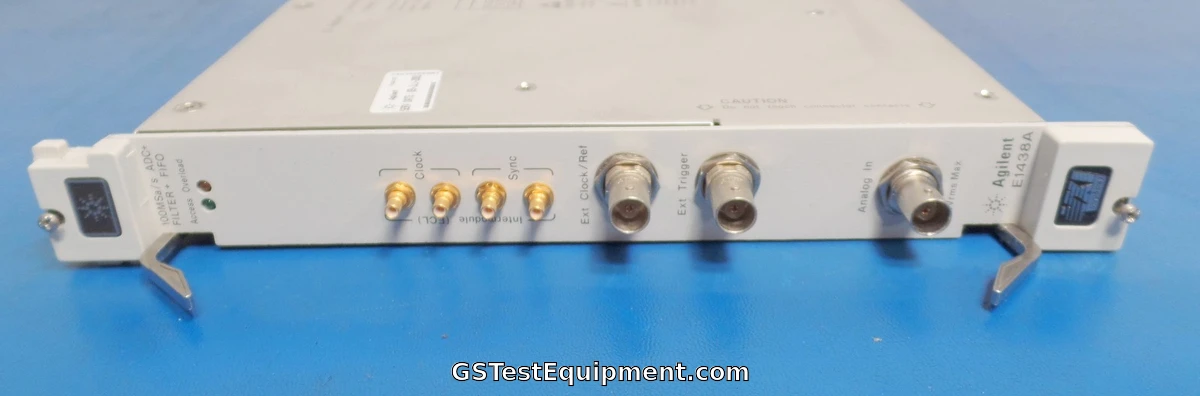

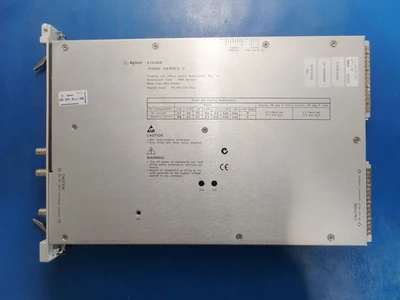

Keysight / Agilent: E1438A - Option: 288

(upgraded unit to 288Mb FIFO memory)

Description: 100 MSa/s Digitizer with DSP and Memory

The Agilent E1438A/B are ideal for applications in signal acquisition and analysis, high resolution ATE and radar testing. This single-channel 100 MSa/s digitizer combines exceptional spurious-free dynamic range with alias-protected signal conditioning, center frequency tunable digital filtering, and a large signal capture memory, in a single-wide C-size VXI module. The E1438B also incorporates a 200 MB/sec FPDP (Front Panel Data Port) capable of carrying full bandwidth data out of the module for analysis or storage.

Features:

• 0 - 40 MHz input bandwidth
• -90 dBfs spurious-free dynamic range
• Anti-alias filter and signal conditioning
• Digital decimation filters with tunable center frequency
• 18MB RAM FIFO memory (expandable to 1.2 GB)
• 2.5 Gigabit/second FPDP (E1438B)
• Local bus and VXIbus outputs
• Multi-channel compatible
• VXI plug&play compatible
• Single-slot, C-size module
