E5351A Mictor Probe-Unterminated, with 40-pin Cable Connector
Description:

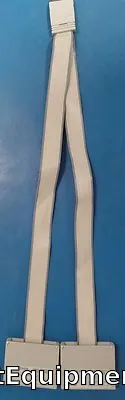

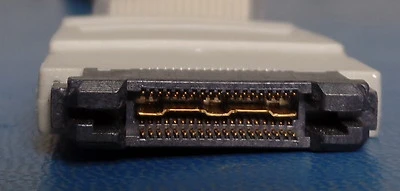

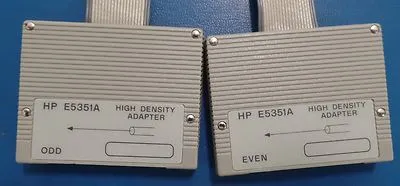

The Keysight E5351A Mictor probe
provides a convenient and reliable connection to your target through a
Mictor connector designed into your target. Additionally this probe
offers the flexibility of designing the probe terminations into your
target allowing you to minimize stubs when the connector cannot be
placed close to the signals being probed. Route your signals of
interest to the location containing the Mictor connector and when you
are ready to measure these signals simply plug-in the Mictor probe.
These probes can be used with a support shroud in environments where
accidental unplugging of the probe is a concern. This probe can be used
with any Keysight logic analyzer with a 40-pin cable connector.
·
34 channels, single-ended clock and
data
·
Small, 3.0pf, equivalent load
capacitance
·
Capable of data rates up to 600Mb/s
(maximum rate dependent on analyzer used
·
500 mV p-p minimum signal amplitude
·
Small connector is easy to incorporate
into your design Keysight number 1252-7431 or AMP number 2-767004-2
·
Support shrouds available for board
thickness to 0.120 inches
Signal
Access
·
34 channels: 32 single-ended data, 2
single-ended clock
Probe
Performance
·
3.0 pF equivalent load capacitance
·
Equivalent to the logic analyzer data
rate the probe is attached to
·
Measure signals with as little as 500
mV p-p signal amplitude
Connectivity
·
Provides convenient, reliable
connection to target through Mictor connector
·
Mictor connector is easy to
incorporate into your design, Keysight number 1252-7431 or AMP number
2-767004-2
·
Requires designing probe terminations
into the target
·
Can be used with support shroud
Compatible
With:
·
Logic analyzers with 40-pin cable
connectors Logic Analyzer Cable Connectors
·
Support shrouds available for board
thickness to 0.12 inches
·
38-pin Mictor footprint
|
