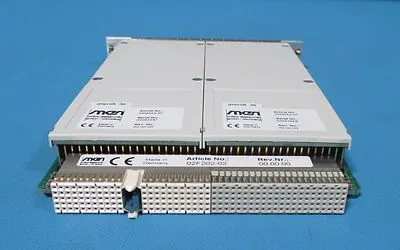

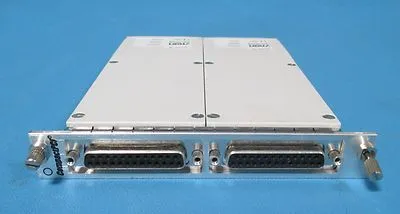

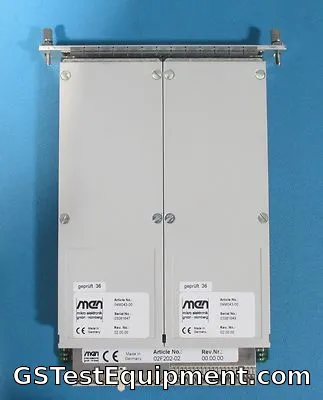

F202
The F202 is a 3U M-Module carrier
board for universal I/O on the CompactPCI bus as well as on PXI for
automated testing requirements. It allows high flexibility in applications
such as data acquisition or process control. The F202 is slightly higher than
standard 3U format, providing enough space for two M-Modules while staying
compatible with CompactPCI or PXI racks through special guide rails already
included in the delivery. M-Modules are screwed tightly on the carrier and
require no separately mounted transition panel. MEN's F202 offers
CompactPCI and PXI developers instant access to more than 70 different
M-Modules for I/O in fields such as process I/O, measurement,
instrumentation, motion control, communication, and development.
M43
The mezzanine card M43 is a relay
output M-Module™ for free potential switching of eight signals. It is
designed for industrial process I/O applications.
The relays implemented guarantee
highest reliability and long life.
The M43 is based on the M-Module™
ANSI mezzanine standard. It can be used as an I/O extension in any type of
bus system, i.e. CPCI, VME or on any type of stand-alone SBC. Appropriate
M-Module™ carrier cards in 3U, 6U and other formats are available from MEN
or other manufacturers.
|
F202 Features & Specifications
- CompactPCI Bus: Compliance with CompactPCI
Spec. 2.0 R2.1, only one slot required on 3U CompactPCI bus, PCI 9050
controller, target on PCI bus, 5V signaling voltage (VIO), max. clock
frequency 33MHz, power supply 5V, compliance with PCI Specification
2.1, 32-bit PCI data bus, V(I/O): +5V
- M-Modules: two M-Module slots on the board
- MTBF: 52,000h @ 50°C
- Peripheral Connections: Via front panel
- PXI: Five trigger lines compliant with PXI
Specification, routing of PXI trigger lines to M-Module interface
TRIGA, TRIGB
- Supply voltage/power consumption: +5V (4.85V..5.25V),
400mA typ. (without M-Modules)
M43
- 8 relay outputs
- 1 A switching power per relay
- One throw-over contact per relay
- Output voltage range max. 48 V
- No separate supply voltage
|
