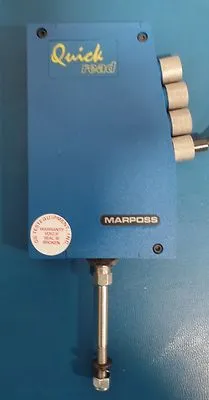

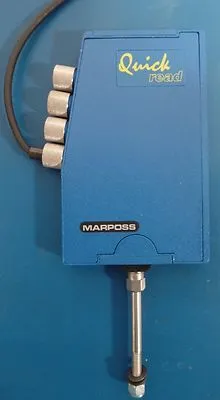

Marposs Quick Read
Built-In Probe Version

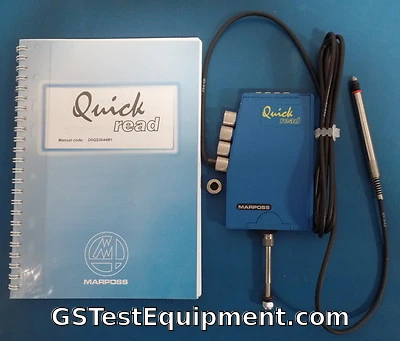

The pencil probe in this version is attached to the main
structure by means of a standard 2 m (78.7") cable.This allows
location of the display away from the measuring device.In multi-dimensional
applications, all the Quick Read™ displays can be mounted to a standard
base structure so that they are located in one common area.
UNIQUE CLEAR DISPLAY
The 3-colour (green, yellow and red) analog display and 8-digit
alphanumeric display provide clear definition and easy reading of the
measurement results.
PROGRAMMABLE PARAMETERS

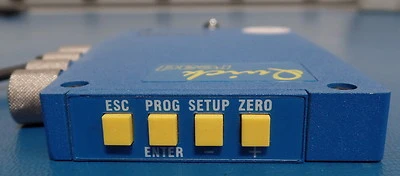

Using the local keypad, the Quick Read™ can be easily programmed to set the
digital display resolution, measuring unit, tolerance limits, master
deviation, full scale, measurement multiplying coefficient, absolute or
comparative reading of the measurement result and the data format for
serial transmission.
SERIAL OUTPUT
The RS232 output port allows for connection to a PC, statistical printer or
data collector for SPC purposes and to a PLC (data can be sent in ASCII or
binary format).
No test cable,
software, manuals or any other accessories provided.
CA residents add 7.75% CA State Sales
Tax.
|
