RF POWER METER -Single Channel
-
Do you have a 8651A you want to sell?
We buy used equipment!
Learn about selling - Only need this item for a short time? Learn about renting

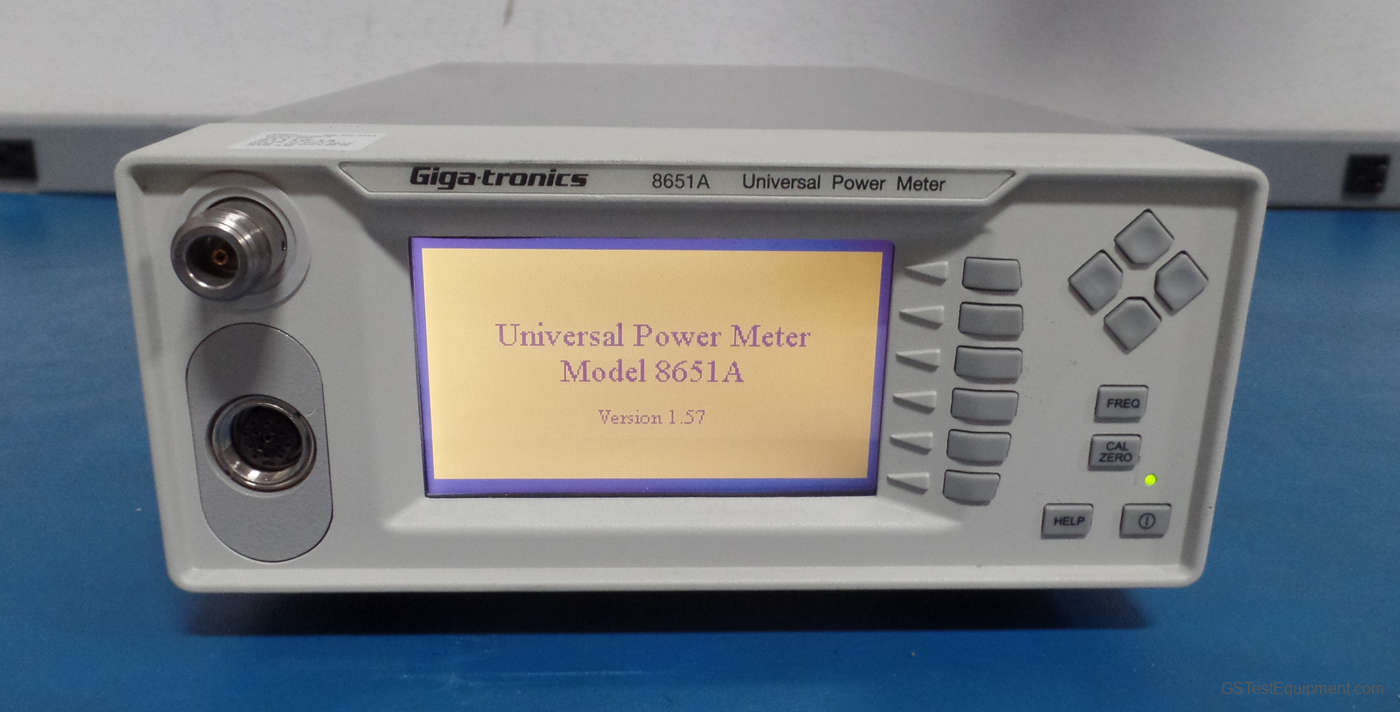

Gigatronics 8651A Overview
The Giga-tronics 8650A Series Universal Power Meters have the extensive measurement capabilities and features you need to test today's sophisticated communications systems faster, easier and more accurately.
The 8650A can measure the CW power, peak power and average power of TDMA, GSM, and CDMA (both IS-95 and third-generation 10 MHz wide band) signals. CW measurement speeds (readings/second) over GPIB are >1,750 and modulated measurement speeds are >300. And the meter includes many time saving features such as automatic time gate setting, direct crest factor measurement, and statistical power measurement analysis.
- 10 MHz to 40 GHz Frequency Range, depending on sensor
- -70 to +47 dBm Power Range, depending on sensor
- 100 ns Maximum Peak Power Sensor Rise Time
- Automatic Time Gate Setting
- Direct Crest Factor Measurement
- Statistical Power Measurement Analysis
Gigatronics 8651A Options
1 GHz Calibrator: (Option 12)
