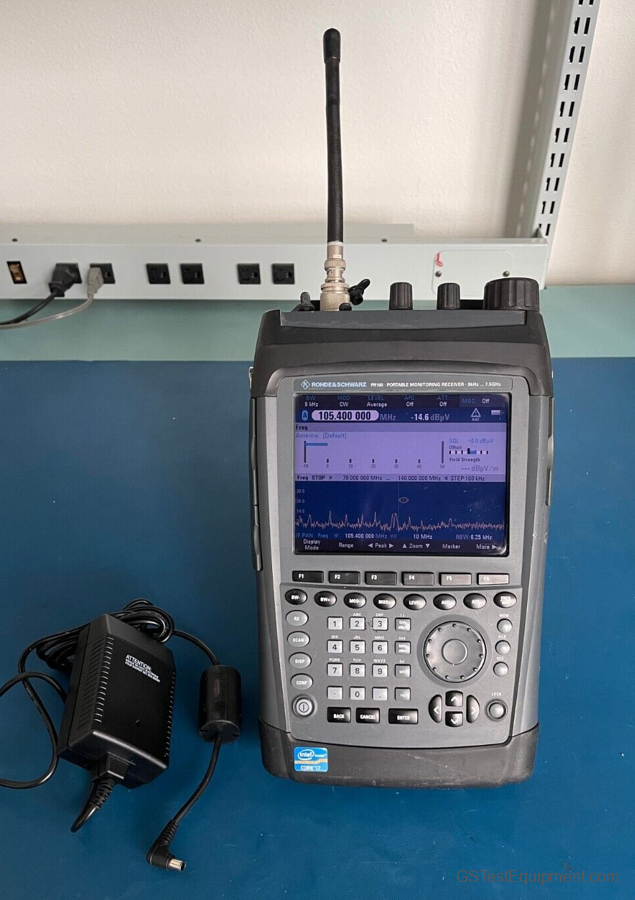

Rohde and Schwarz PR100 Overview

The R&S®PR100 is a portable receiver for radiomonitoring in the wide frequency range from 9 kHz to 7.5 GHz.

Whether used for monitoring emissions, detecting interference, or locating miniature transmitters, the receiver offers features unrivaled in its class. Together with the R&S®HE300 portable directional antenna, it forms a compact receiving system.

The R&S®PR100 is notable for its wide frequency range, excellent receive characteristics, realtime bandwidth of 10 MHz, and large 6" color display. In combination with the enhanced marker function and display capability, the large display allows convenient, optical evaluation of signals by measurement.

Its small dimensions and low weight make the R&S®PR100 ideal for use in places that cannot be reached with a vehicle. Its low power consumption permits battery operation of up to four hours. The battery pack can be exchanged very quickly. The current measurement data is automatically written to the internal memory when the instrument is switched off.

In order to yield good results even in areas with high signal levels, the receiver is equipped with effective preselectors. This reduces the signal sum load in scenarios that involve a large number of powerful transmitters.

All receiver functions can be remote-controlled via the LAN interface (Ethernet 10/100BaseT). All measurement results, including the spectrum data, are output via the interface. The receiver can therefore also be used in combination with a remote operating station.

Features:

• Ergonomic and rugged design for portable use
• Detection of unknown signals
• Frequency scan and memory scan
• Location of emissions using the R&S®HE300 portable directional antenna
• Reliable location of sources of interference
• Demodulation and audio monitoring of emissions
• Signal storage in instrument and externally
• Signal demodulation at up to 500 kHz bandwidth
• 15 IF filters from 150 Hz to 500 kHz
• RF spectrum with user-definable frequency range
• IF spectrum with continuous display range from 10 kHz to 10 MHz
• Realtime bandwidth of 10 MHz
• Spectrum and waterfall display
• Output of complex baseband data
• 6" VGA color display
• LAN interface (SCPI) for remote control and output of measurement data and I/Q data
