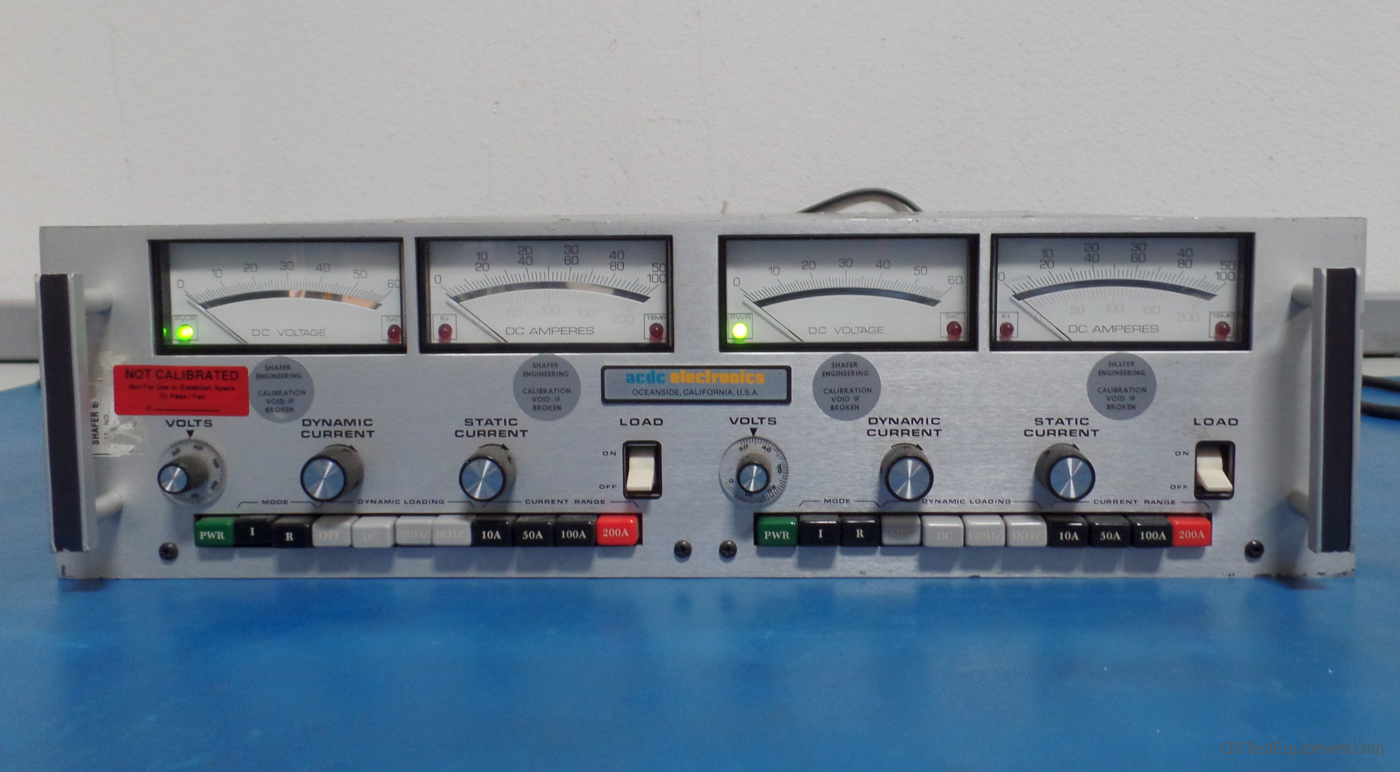

AC/DC Electronics EL750BR-2-1 Overview
Product Overview
The EL750B is ideal for verification of single output power supply operation. Static or dynamic resistance loading tests performance such as output lregulatoin or transient response. External variable load modulation can determine output impedance at specific frequencies. In the constant current mode, it functions to test discharge rates of batteries or capacitor banks. Used with a DC power source, it becomes a variable constant current supply useful for measurement of resistance values of components or motor coils under operating conditions. The forward voltage drop of rectifier diodes or high current terminal connections can also be tested in this fashion.
Features:
- Dissipates up to 750W
- 1.8V to 55VDC up to 150A
- Static or Dynamic Testing
- Constant Current or constant resistance modes
- Built-in square wave generator 120 Hz or 1 KHz operation
- Programmable with externally applied variable DC voltage
- Parallel operation for greater flexibility
- Meter shunt for calibration or digital read-out
- Front panel fault detectors
