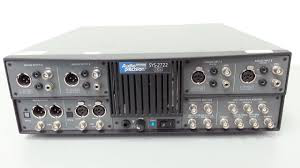

Name: Audio Precision SYS-2722
Brand: Audio Precision
SKU: SYS-2722
Availability: InStock

Audio Precision SYS-2722 Overview

Accessories Include:

USB-APIB Kit
Interconnect Cable Kit P/N CAB-XBR
Interconnect Cable Kit P/N CAB-XMF
Personal Stereo Player Test Cable
System Two Filter Motherboard
Connectors P/N 528971-00
USB 2.0 Cable Qty.2
BNC Cable Qty.4
BNC Test Leads Qty.4
Customer Documents

Specifications:

Low Distortion

Analog system 1 kHz THD+N, 20 kHz BW ? –112 dB
(Typical worst case harmonic < –130 dB)
Digital generator distortion/spurious products ? –160 dB

High Bandwidth

Analog signal generation to 204 kHz
Analog measurements to 500 kHz
Analysis by FFTs and Multitone to 120 kHz

Low Noise

Analog analyzer 22 Hz–22 kHz BW ? –118 dBu
Analog analyzer A-weighted ? –124 dBu

Flat Response

Analog system 20 Hz–20 kHz
typically ± 0.003 dB

Low Crosstalk

Analog inputs 20 Hz–20 kHz ? –140 dB
Analog output 20 Hz–20 kHz ? –120 dB

Low Jitter

700 Hz–100 kHz BW ? 600 ps
50 Hz–100 kHz BW ? 1.0 ns

FFT Acquisitions

Up to 4 M Samples(87 s @ 48 kHz Fs)

Audio Precision SYS-2722 Features & Options

IMD - Analog Intermodulation Distortion to SMPTE/DIN, CCF and DIM/TIM standards.
BUR - Analog burst sine waves, square waves to 20 kHz, random and pseudorandom
S-AES17 - . Lowpass filter for AES17 DAC measurements.
Filters:
AWT
B20k
B40k
Interface:
APIB
GPIB
