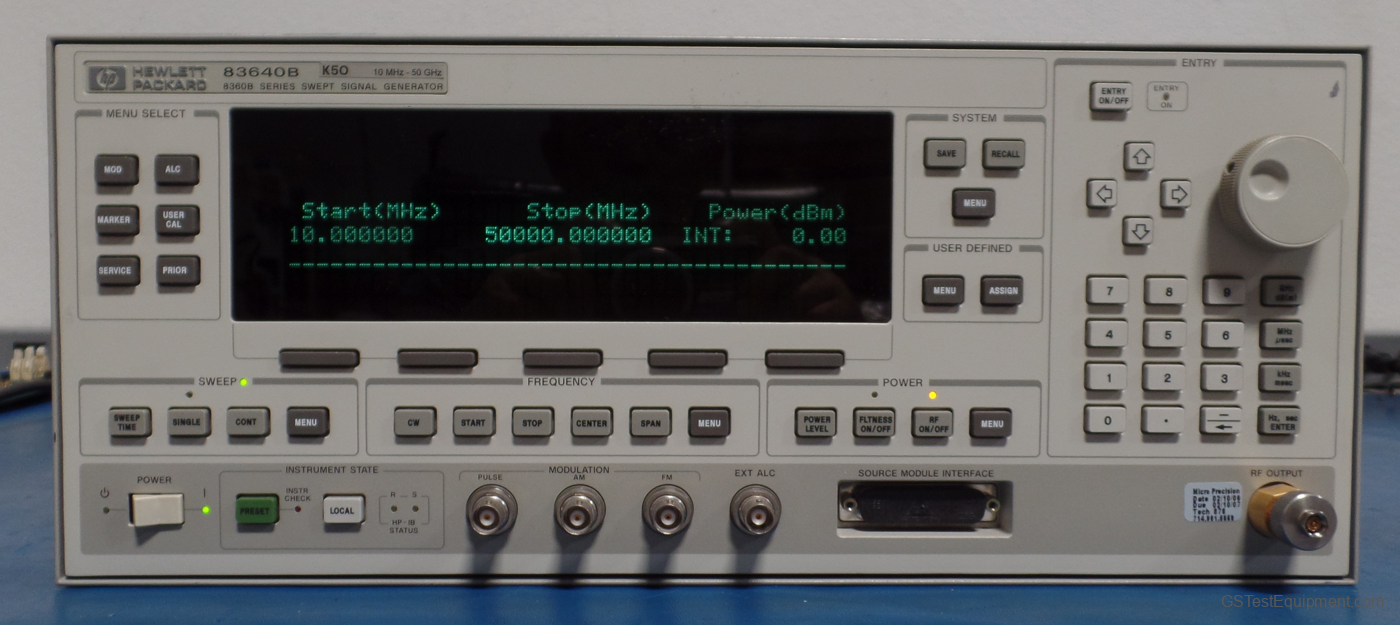

HP / Keysight / Agilent 83650B-001-002-008 - Signal Generators

• +10 dBm calibrated output power
• -50 dBc harmonics <26.5 GHz typical
• SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
• Complete analog sweeper
• 1 Hz frequency resolution (Option 008)
• Pulse, amplitude and frequency modulation (8360B Series only)
• -110 dBm output power with step attenuator (Option 001)

K50 - Agilent K40 to 50GHz retrofit
G03 is a bundle to retrofit 001, 002 and 008 into the unit.
H90 provides improved phase noise performance at specific frequencies.

Meas (dBc)     -88    -88   -88   -88    -114    -120   -124
B1 (CW 6.99GHz)
OFFSET         100Hz  1kHz  3kHz  10kHz  100kHz  1MHz   10MHz
Meas (dBc)     -82    -86   -86   -86    -112    -132   -134
B2 (CW 10GHz)
OFFSET         100Hz  1kHz  3kHz  10kHz  100kHz  1MHz   10MHz
Meas (dBc)     -80    -84   -84    -84   -110    -130   -134
B3 (CW 18 GHz)
OFFSET         100Hz  1kHz  3kHz  10kHz  100kHz  1MHz   10MHz
Meas (dBc)     -75    -80   -80   -80    -105    -125   -129
B8 (CW 40 GHz)
OFFSET         100Hz  1kHz  3kHz  10kHz  100kHz  1MHz   10MHz
Meas (dBc)     -65    -72   -72   -72    -95     -115   -120
