HP / Keysight / Agilent 8560EC Overview
8560EC was discontinued on 1 September 2009. For more information, refer to 856xE/EC Migration Assistance

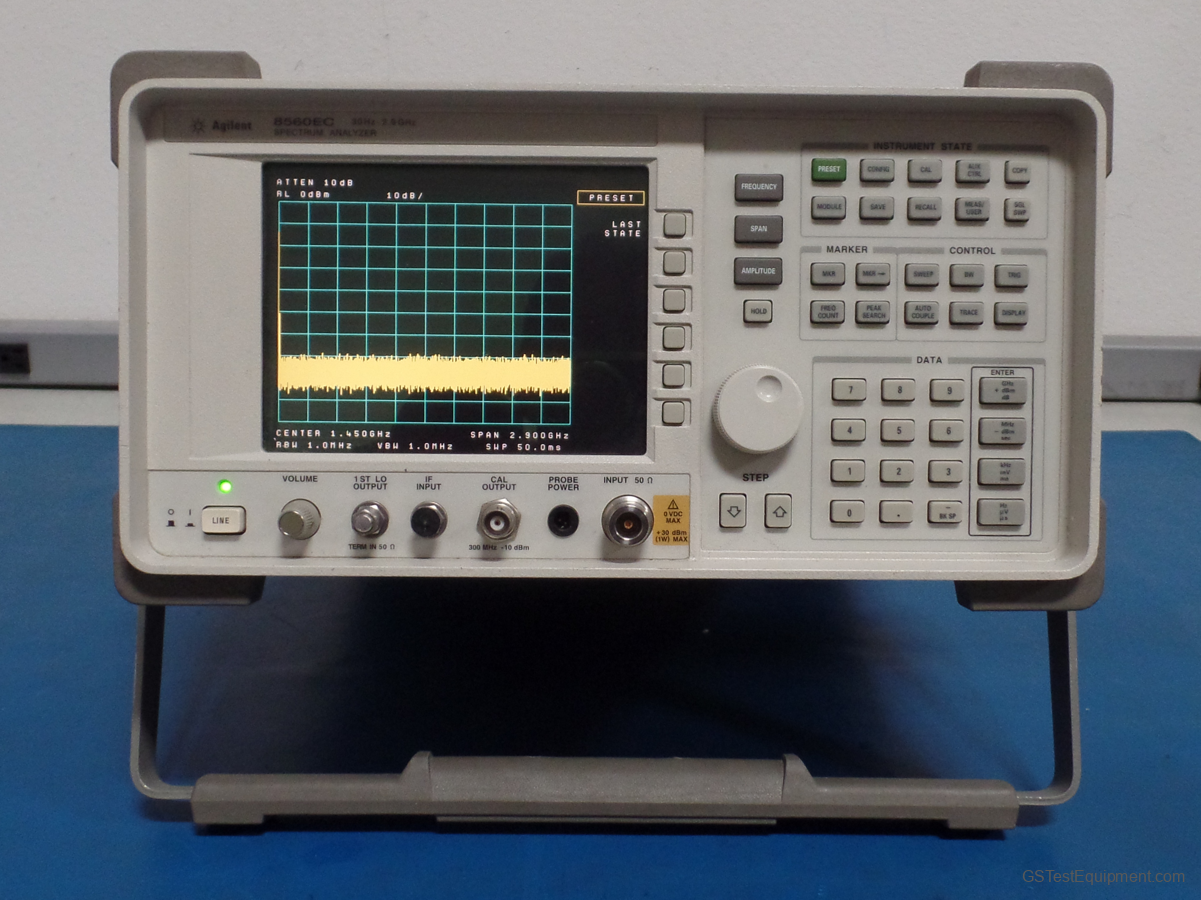

The Agilent 8560EC portable, color display RF spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.
Agilent offers 5-year support life to this product. Additionally, we will give our best effort to provide information on obsolete products that are no longer under support life.
Performance
- +/-1.0 dB absolute amplitude accuracy
- -151 dBm/Hz displayed average noise level (DANL)
- <-113 dBc/Hz phase noise @ 10 kHz offset
Features
- Fast digital resolution bandwidths of 1 Hz to 3 MHz
- Portable, MIL-PRF-28800, Class 3 rugged
- Easily transfer screen image or trace data to PC with BenchLink software E4444A BenchLink software
