HP / Keysight / Agilent 8562EC - Spectrum Analyzers

Name: HP / Keysight / Agilent 8562EC
Brand: HP / Keysight / Agilent
SKU: 8562EC
Availability: InStock

Agilent 8562EC 30 Hz - 13.2GHz Spectrum Analyzer

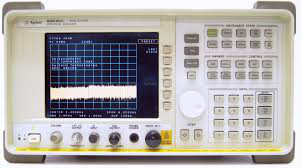

HP / Keysight / Agilent 8562EC Spectrum Analyzers - front view

Get a Quote

Sell Your 8562EC

We buy used Spectrum Analyzers equipment!

Trade-in quote →

Rent 8562EC

Short-term rental options available

Rental quote →

Product Details

Model:: 8562EC
Manufacturer:: HP / Keysight / Agilent
Category:: Spectrum Analyzers
Availability:: Available - Request Quote

Can't find the exact model? Request a quote and we'll respond quickly.

HP / Keysight / Agilent 8562EC Overview

The 8562EC has a color display and frequency range of 30 Hz to 13.2 GHz, which covers the spur-search ranges specified by leading standards organization in Europe and the United States for GSM. With its fast DLP execution speed, 8562EC reduces your test times in production.

Performance

+/-1.0 dB absolute amplitude accuracy
-151 dBm/Hz displayed average noise level (DANL)
<-113 dBc/Hz phase noise at 10 kHz offset

Features

Fast digital resolution bandwidths of 1 Hz to 3 MHz
Portable, MIL-PRF-28800, Class 3 rugged
Easily transfer screen image or trace data to PC with BenchLink software E4444A BenchLink software

HP / Keysight / Agilent 8562EC Complete Specifications

001	Second IF output rear panel connector (310.7MHz)
005	Add alternate sweep output
007	Digitized fast time domain sweeps (standard)
008	Signal Identification
042	Gray spectrum analyzer backpack
044	Yellow spectrum analyzer backpack
0B0	Do not include manuals
0Q8	Factory Delivered Service Training
103	Delete Precision Frequency Reference, and 1 Hz and 3 Hz RBWs
104	Delete HP 85620A Mass Memory Module
1BN	Military Standard 45662A Calibration Certification
1BP	Military Standard 45662A Calibration with Test Data
82350B	PCI High-Performance GPIB Interface Card
82357B	USB/GPIB Interface High-Speed USB 2.0
8ZE	Factory Refurbished
908	Rack Flange Kit for Use without Handles
909	Front Handle & Rack Flange Kit
910	Additional operating and service manual
915	Additional Service Manual
916	Extra pocket-size Quick Reference Guide
944	Mass memory module manual - U.S. - English
946	Mass memory module manual - Japanese localization (includes U.S. - English)
AB2	China Quick Users Guide (Chinese localization)
ABD	Germany Quick Users Guide (German localization)
ABE	Spain Quick Users Guide (Spanish localization)
ABF	France Quick Users Guide (French localization)
ABJ	Japan Quick Users Guide (Japanese localization)
ABZ	Italy Quick Users Guide (Italian localization)
B70	BenchLink Spectrum Analyzer Software
C90	Factory installed rackmount kit with handles and flanges
C91	Factory installed rackmount kit without handles and flanges
E35	ACPR Test Set
E4444A	BenchLink Spectrum Analyzer Connectivity Software
E5810A	LAN/GPIB Gateway
H35	Firmware Upgrade for option K35
J67	Bundles options UK6,006 & 007
K35	System with CDMA Test Set Attaced
R08	Signal identification retrofit kit
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6	Commercial calibration with test results data
UKS	Certificate of Calibration
