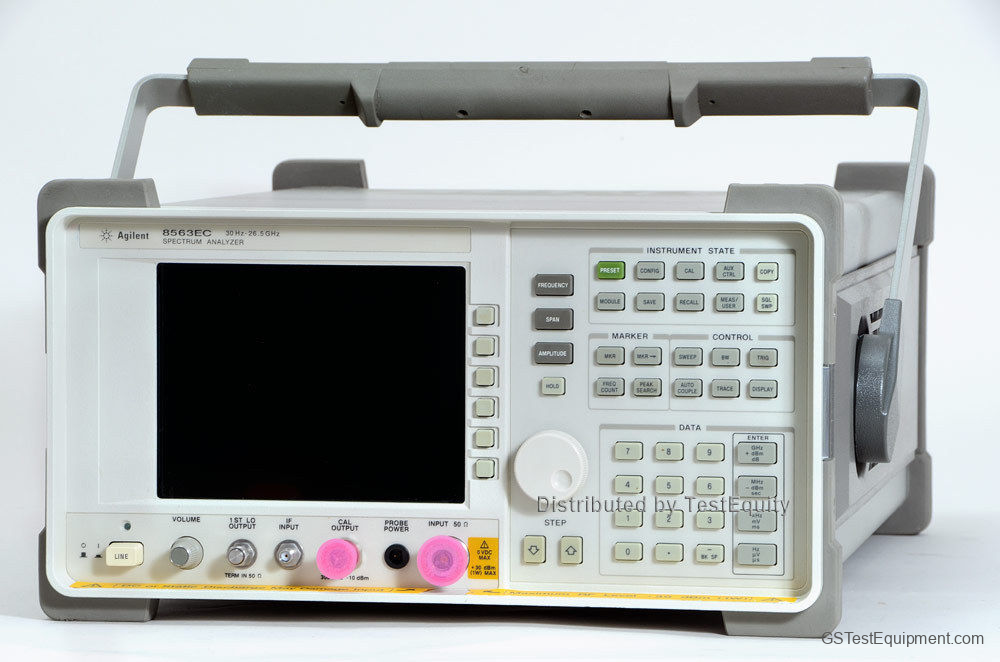

HP / Keysight / Agilent 8563EC - Spectrum Analyzers

8563EC was discontinued on 1 September 2009. For more information, refer to 856xE/EC Migration Assistance

The Agilent 8563EC portable, color display microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.

Performance

• +/-1.0 dB absolute amplitude accuracy
• -149 dBm/Hz displayed average noise level (DANL)
• <-113 dBc/Hz phase noise at 10 kHz offset

Features

• Fast digital resolution bandwidths of 1 Hz to 3 MHz
• Portable, MIL-PRF-28800, Class 3 rugged
• Easily transfer screen image or trace data to PC with BenchLink software E4444A BenchLink software
