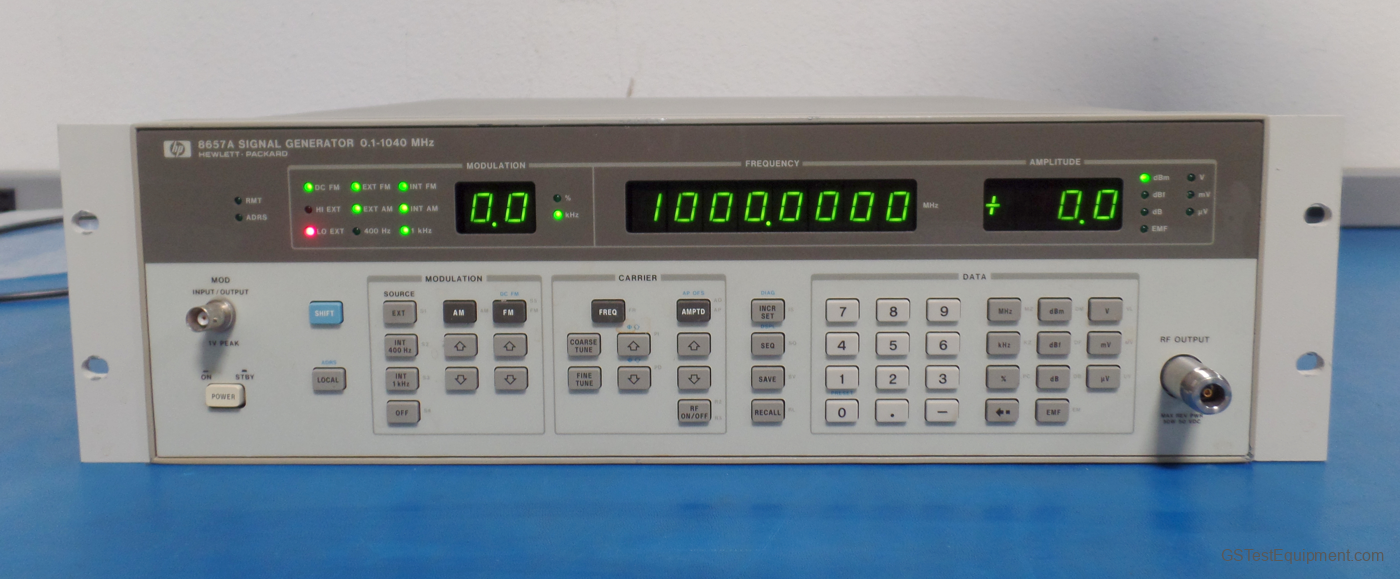

HP / Keysight / Agilent 8657A - Signal Generators

The Agilent 8657A offers excellent performance at an economical price. The low residual FM and excellent phase noise performance of these signal generators make them ideal for many in-channel and even out-of-channel receiver tests. The Agilent 8657A is a versatile signal generator offering a variety of features, such as simultaneous and mixed modulation combinations of AM and FM, as well as a carrier phase adjust capability that allows you to characterize phase-sensitive devices. In addition, the Agilent 8657A offers a wide output range, +13 to -143.5 dBm, with superior level accuracy of ±1.0 dB. Built for reliability, the Agilent 8657A uses an all-electronic attenuator.

Features:

• Wide frequency coverage, 100 kHz to 1040 MHz
• Electronic attenuator
• < 35 ms frequency switching speed
• AM and FM capabilities
• ±1 dB level accuracy (typically ±0.5 dB)
• Amplitude offset and phase adjustment capabilities
• 0.3 GMSK Modulation Option
