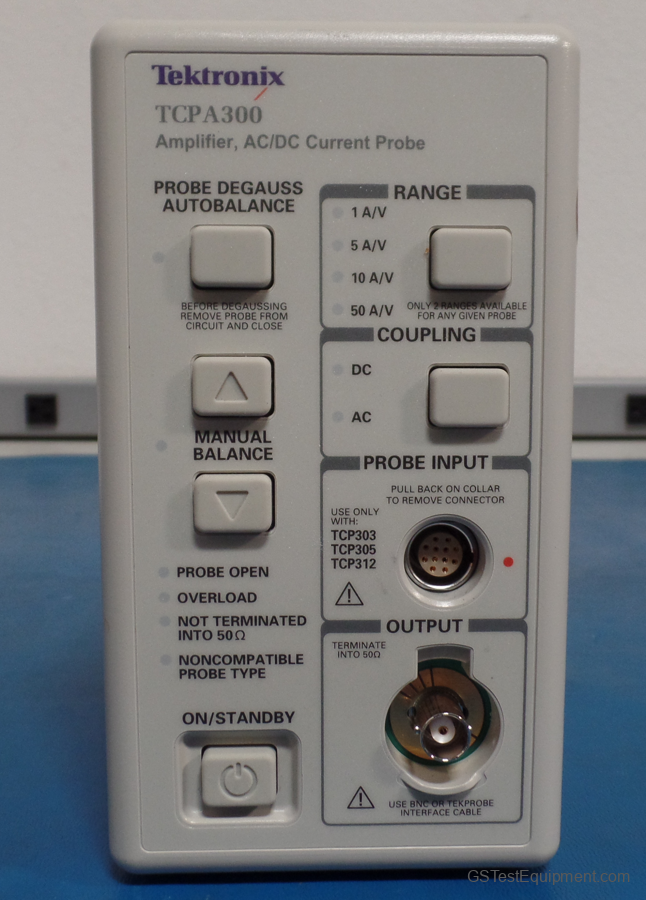

Tektronix TCPA300 Overview
- AC / DC Measurement Capabilities
- DC to 100MHz, Current Probe Amplifier (TCPA300) Uses:
- DC to 100MHz, 30 A DC (TCP312)
- DC to 50MHz, 50 A DC(TCP305)
- DC to 15MHz, 150 A DC (TCP303)
- DC to 50MHz, Current Probe Amplifier (TCPA400) Uses:
- DC to 2MHz, 750*1 A DC (TCP404XL) (500 A DC Continuous)
- Automatic Scaling and Units*2 - Oscilloscope On-Screen Readout of Magnitude and Units Reduces Measurement Errors with No More Hand Calculations
- AC / DC Input Coupling
- Low Insertion Impedance Reduces Device Under Test Loading
- Small Mechanical Package - Less Desktop Space, Easier Storage and Handling
- Split-Core Construction Allows Easy Circuit Connection
- Status Indicators Provide Visual Operating Status and Notification of Potential Error Conditions
- Lower DC Drift and Noise Allows Improved Low Level Current Measurements
- Certified for use in U.S., Canada, and Europe. Complies with applicable IEC standards.
